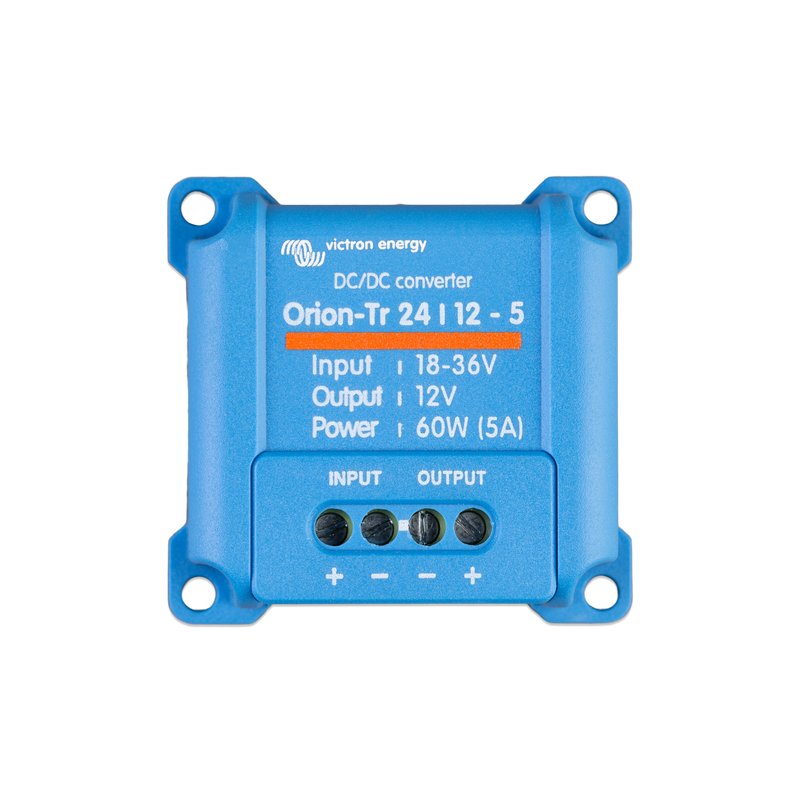

Orion-Tr 24/12-5A (60W) - not insulated
ORI241205200
DC/DC voltage converter 24/12V 5Amp
- Input voltage 24V, fixed output voltage 12.7V
- Charging current 5Amp
- Efficiency: 95%
Orion-Tr DC/DC Converter 24/12V 5 Amp - non-isolated
Voltage converter with fixed output voltage, the efficiency reaches more than 95 % due to synchronous rectification.
IP43 protection: When the device is installed with the screw terminals facing downwards.
ORI241205200
Data sheet
- Input voltage
- 18-35V
- Output voltage
- 12.7V
- Output voltage Characteristic
- Fixed voltage
- Connections
- Open ends 3.3mm2
- Number of outputs
- 1
- Galvanic insulation
- NO
- Protection class IP
- IP 43
- Dimension
- 53 x 51 x 27mm
- Weight
- 0.09kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/orion-24-12-5-10#datasheet
Specific References
- EAN13
- 8719076022848
- MPN
- ORI241205200
