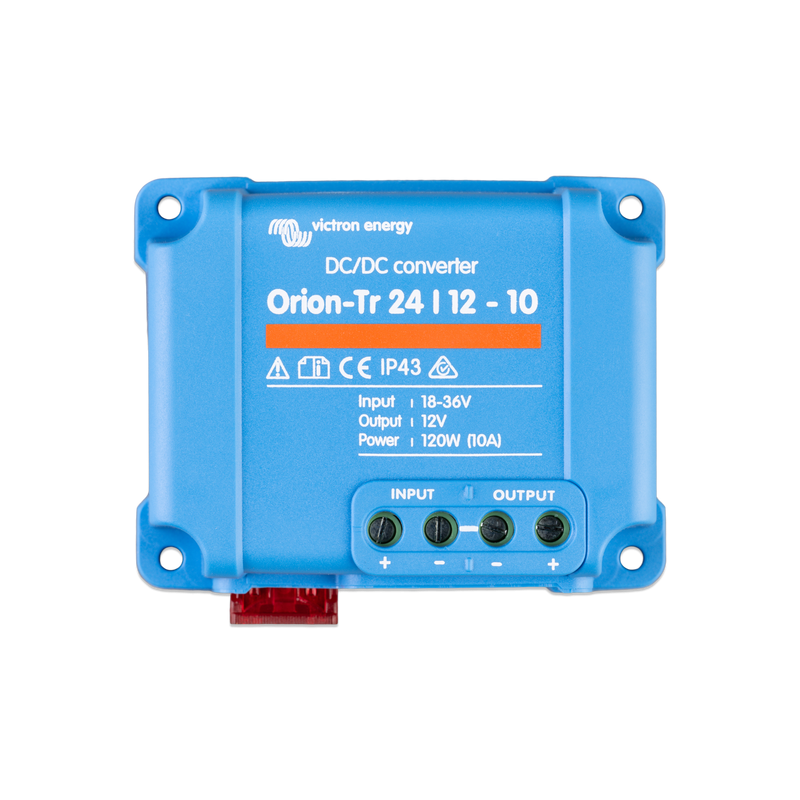

Orion-Tr 24/12-10A (120W) - not insulated
ORI241210200R
DC/DC voltage converter 24/12V 10Amp
- Input voltage 24V, fixed output voltage 12.5V
- Charging current 10Amp
- Efficiency: 97%
Accessories / Levy
Installation
Orion-Tr DC/DC Converter 24/12V 10 Amp - non-isolated
Voltage converter with fixed output voltage, the efficiency reaches more than 95 % due to synchronous rectification.
IP43 protection: When the device is installed with the screw terminals facing downwards.
ORI241210200R
Data sheet
- Input voltage
- 18-35V
- Output voltage
- 12.5V
- Output voltage Characteristic
- Fixed voltage
- Connections
- Open ends 6mm2
- Galvanic insulation
- NO
- Protection class IP
- IP 43
- Dimension
- 73 x 94 x 45mm
- Weight
- 0.2kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/orion-24-12-5-10#datasheet
Specific References
- EAN13
- 8719076022886
- MPN
- ORI241210200
