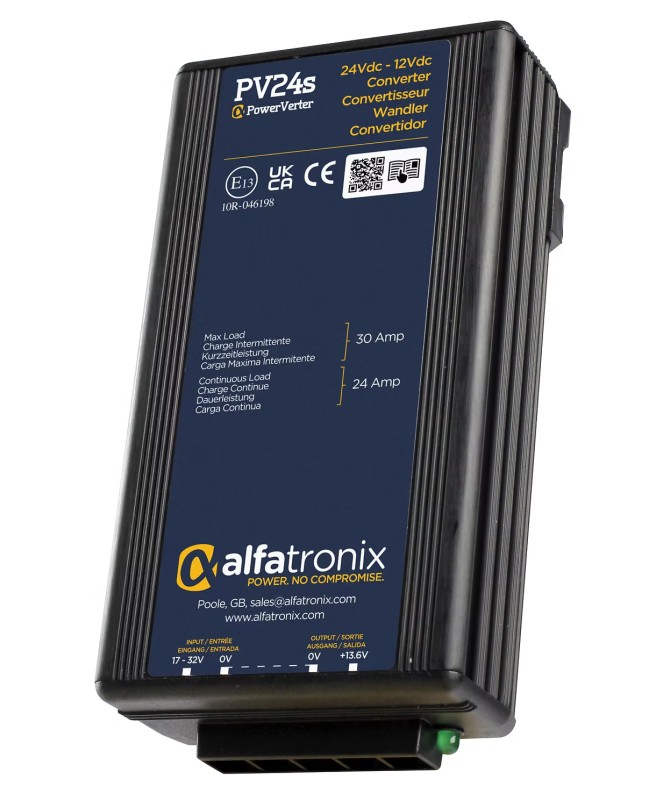

Alphatronix PV24s DC/DC converter 24/12V - 30Amp - non-isolated

POWERVERTER


These products offer a practical solution for operating standard 12VDC equipment such as z.B. Cell phones, consumer electronics, professional communication technology, telematics, refrigerators and televisions in 24VDC diesel vehicles and boats.

The PowerVerters are suitable for high-volume 24VDC-12VDC applications in trucks, buses, forestry and agricultural vehicles and boats in the commercial and leisure marine sector.

The devices offer IP53 protection, d.h. there are no ventilation openings through which foreign bodies, dust or water could enter the housing.

The fuses are fitted internally and only blow in the event of a malfunction and therefore do not need to be accessible externally.

The quiescent current consumption of the devices is less than 15mA, d.h. lower than the self-discharge of a vehicle battery. In most cases, this quiescent current consumption can be ignored, which guarantees quick installation without a remote switch.

All products are mounted with the tried and tested "Click 'n Fit" mounting clip. The clip's three-hole holder allows it to be installed quickly and securely, even on uneven surfaces and in hard-to-reach places. Once the clip has been installed, the device snaps into the clip holder.

A mounting kit for DIN rail installation is also available.

The green LED indicates the operation of the voltage transformer. This serves as support for the installer and speeds up the identification of faults.

Technical information
