Featured products

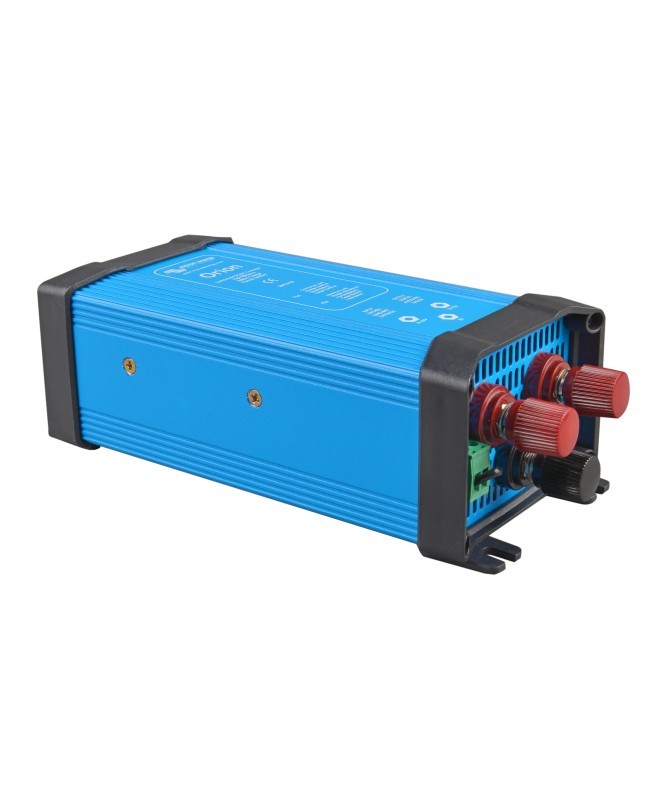

Orion 24/12-80A with pole terminals - not insulated
ORI241280030
DC/DC converter 24/12V 80Amp
- Input voltage 24V, output voltage adjustable, 10-15V
- Continuous current 80Amp,
- Efficiency: 92%
Orion-Tr DC/DC converter, non-isolated, high performance:
Remote on/off connection
The remote on/off connection eliminates the need for a high-current switch in the input wiring
. The remote on/off connection can be controlled using a power-saving switch or the motor's
run/stop switch (see manual).
All models with an adjustable output can also be used as a battery charger.
For example, to charge a 12 V starter or auxiliary battery in an otherwise 24 V system.
All models with adjustable output can be connected in parallel to increase the output current.
Up to five devices can be connected in parallel.
ORI241280030
Data sheet
- Input voltage
- 18-35V
- Output voltage
- 10-15V
- Amperage
- 80A
- Output voltage Characteristic
- Adjustable fixed voltage
- Connections
- Polklemme (offene Enden)
- Galvanic insulation
- NO
- Protection class IP
- IP 20
- Dimension
- 65 x 88 x 195mm
- Weight
- 0.9kg
- Note
- Remote control
- Note
- Blower ventilation
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/orion-dc-dc-converters-12v-24v-48v-110v#datasheet
Specific References
- EAN13
- 8719076070849
- MPN
- ORI241280030
