Featured products

Blitzschutz / Ueberspannungsableiter AC T1+2 - 1Phase
  • Blitzschutz / Ueberspannungsableiter AC T1+2 - 1Phase
  • Blitzschutz / Ueberspannungsableiter AC T1+2 - 1Phase
  • Lightning protection_surge arrester_ac

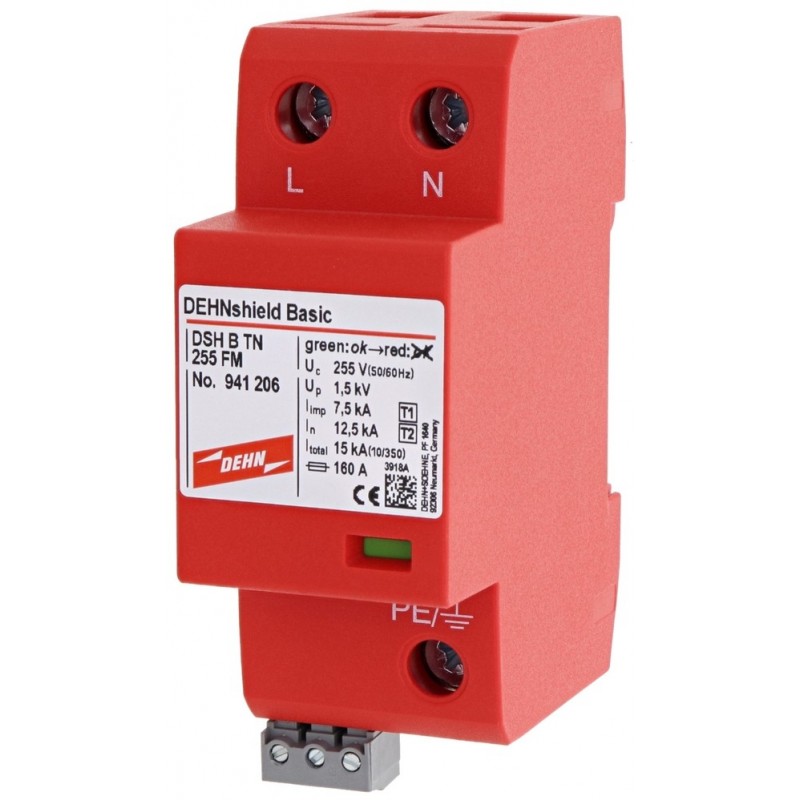

Lightning protection / surge arrester AC T1+2 - 1phase

BS941206AC-1P

Lightning protection AC for 1 phase

- Arrester type 1+2
- continuous voltage AC: 255V
- without housing, for DIN rail

CHF348.00
excl. VAT.
CHF376.19 incl. VAT.
favorite_border Add to wishlist

Delivery time from order 7-10 days
Stock: 0 Pcs.
In the inflow: 0 Pcs.

Lightning protection / surge arrester for 1 phase - 230V



1x arrester type 1+2, DSH B TNS 255 FM
Highest continuous voltage AC (UC 255V (50/60 Hz)
Lightning surge current (10/350 µs) [L+N-PE] (Itotal ) 15 kA
with remote signalling contact Changeover switch

without housing, for DIN rail

BS941206AC-1P

Data sheet

Connections
Screwable - max. 35 mm2 stranded / 25 mm2 finely stranded
Feature
for 1 phase
Dimension
2 TE (width units)
Arrester type
Arrester type 1+2
Frequently asked questions
https://www.dehn.de/de/haeufig-gestellte-fragen
System voltage
AC - continuous voltage 255VAC
