Lightning protection / surge arrester AC T1+2 - 3phase
BS941406AC-3P
Lightning protection AC for 3 phases
- Arrester type 1+2
- continuous voltage AC: 255V
- without housing, for DIN rail

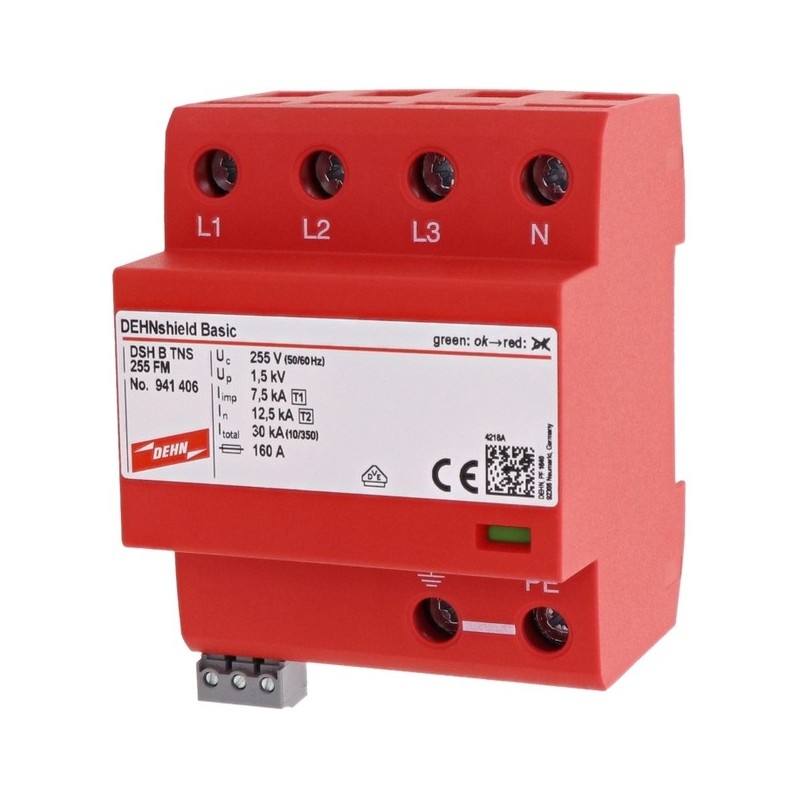

Lightning protection / surge arrester for 3 phase - 230V
1x arrester type 1+2, DSH B TNS 255 FM
Highest continuous voltage AC (UC 255V (50/60 Hz)
Lightning surge current (10/350 µs) [L+N-PE] (Itotal ) 15 kA
with remote signalling contact Changeover switch
without housing, for DIN rail
BS941406AC-3P
Data sheet
- System voltage
- AC - Dauerspannung 255VAC
- Connections
- Schraubbar - max. 35 mm2 mehrdrähtig / 25 mm2 feindrähtig
- Feature
- Dimension
- Arrester type
- Ableitertyp 1+2
