LYNX Distributor M10
LYN060102010
4-way distributor plus & minus for MEGA fuses
- System voltage 12-48V, maximum current 1000A
- Connections M10, for 4 MEGA fuses
- Connection of plus & minus, with cover cap,
- suitable for Lynx BMS 1000

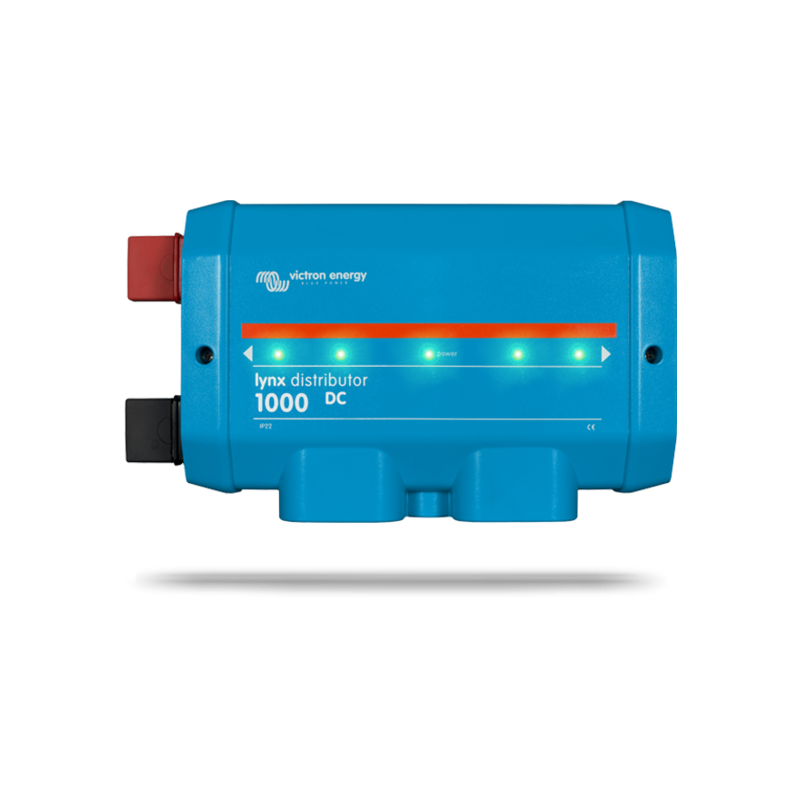

Lynx Distributor M10
The Lynx Distributor is a modular DC busbar with devices for four DC MEGA fuses. In conjunction with the Lynx Shunt VE.Can or the Lynx Smart BMS, the status of each fuse can be monitored via app or displayed via LED on the front. It can be used as part of the modular Lynx distribution system or on its own as a fuse / distributor.
Difference to the Lynx Power IN, the Lynx Power IN does NOT have any fuses and "only" serves as a connection for plus / minus. It also has no monitoring function.
The Lynx Distributor fits the Lynx BMS 1000
LYN060102010
Data sheet
- Amperage
- 1000A
- Connections
- M10 busbar - M8 fuses
- Number of outputs
- 4
- Protection class IP
- IP22
- Feature
- 1000A
- Dimension
- 290 x 170 x 80 mm
- Weight
- 2.3kg
- Fuse type
- Mega
- Note
- Fuses: MEGA (not included)
- Note
- Fuses can also be used as inputs
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-distribution-systems/lynx-distributor#manuals
- System voltage
- 12, 24, 48VDC
Specific References
- EAN13
- 8719076057628
- MPN
- LYN060102010
