Featured products

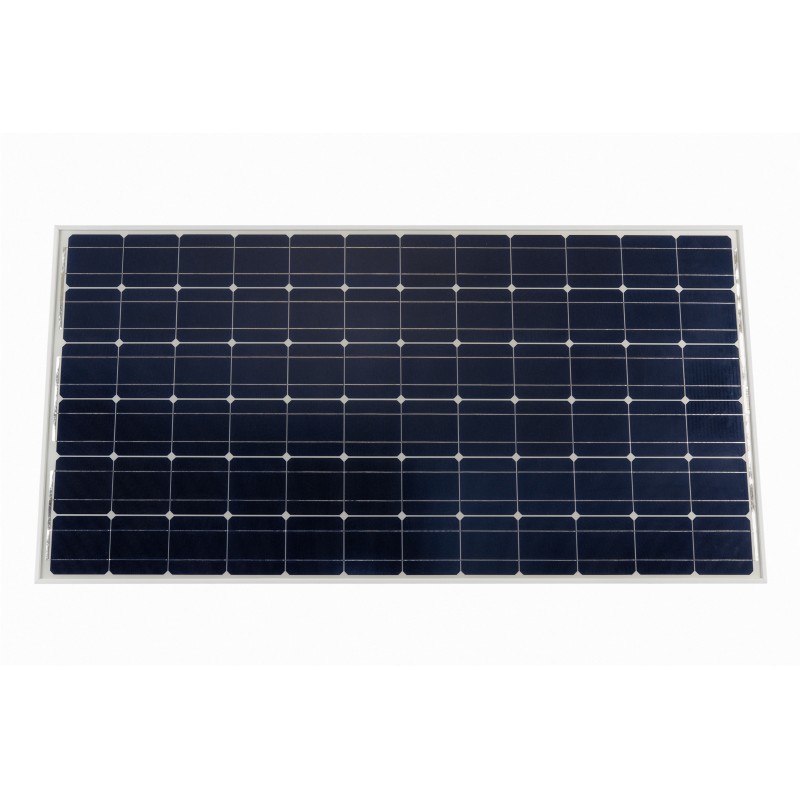

Solar panel 40W-12V, monocrystalline - 4a
SPM040401200
Solar module monocrystalline 40Wp
- Battery voltage 12V, power 40Wp
- 3.1kg, no cable
- 425 x 668 x 25mm
Accessories / Levy
Solar charge controller
Solar cable
Solar installation
Tools
BlueSolar Panel Mono 40Wp
- Low temperature-voltage coefficient ensures high efficiency even at high temperatures.
- Exceptional performance even in low light conditions and high light sensitivity across the entire solar spectrum.
- 25-year limited warranty on power output and performance.
- 5-year limited warranty on materials and workmanship 5-year limited warranty on materials and workmanship.
- Sealed, waterproof, multifunctional junction box provides a high level of security.
- High performance bypass diodes minimize current drop caused by shading.
- Advanced EVA (ethylene vinyl acetate) encapsulation system with triple-layer backsheet meets the most stringent safety regulations for high voltage operation.
- Sturdy, anodized aluminum frame allows modules to be easily mounted to the roof using a variety of standard mounting systems.
- Highest quality, high transmittance Sekurit glass provides enhanced strength and impact resistance.
- High performance models with pre-wired quick connect system with MC (PV-ST01) connectors.
SPM040401200
Data sheet
- Panel power
- 40Wp
- Connections
- no cable
- Solar panel length (mm)
- 425mm
- Solar panel width (mm)
- 668mm
- Solar panel height (mm)
- 25mm
- Solar panel Vmpp
- 18.3V
- Solar panel Impp
- 2.19A
- Weight
- 3.1kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/solar-pv-panels/bluesolar-panels#downloads
- System voltage
- 12V
Specific References
- EAN13
- 8719076047407
Solar module monocrystalline 40Wp
- Battery voltage 12V, power 40Wp
- 3.1kg, no cable
- 425 x 668 x 25mm
