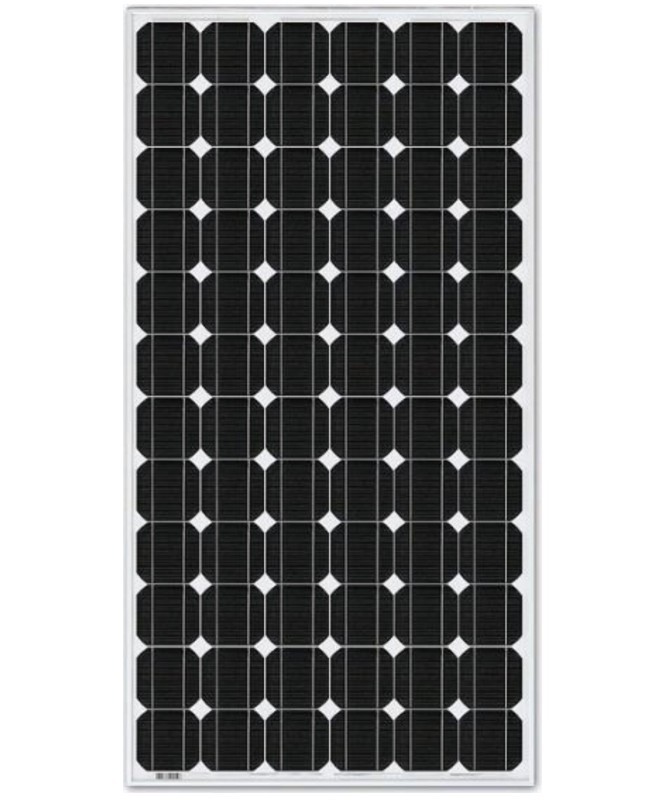

Solar panel 235W-24V, monocrystalline - 72 cell - 4c
SPM042357203
Solar module monocrystalline 235Wp
- Battery voltage 12-24V, power 235Wp
- 12.48kg, 0.9m cable with MC4
- 1350 x 880 x 30mm
Accessories / Levy
Solar charge controller
BlueSolar Panel Mono 235Wp
- Low temperature-voltage coefficient ensures high efficiency even at high temperatures.
- Exceptional performance even in low light conditions and high light sensitivity across the entire solar spectrum.
- 25-year limited warranty on power output and performance.
- 5-year limited warranty on materials and workmanship 5-year limited warranty on materials and workmanship.
- Sealed, waterproof, multifunctional junction box provides a high level of security.
- High performance bypass diodes minimize current drop caused by shading.
- Advanced EVA (ethylene vinyl acetate) encapsulation system with triple-layer backsheet meets the most stringent safety regulations for high voltage operation.
- Sturdy anodized aluminum frame allows modules to be easily mounted to the roof using a variety of standard mounting systems.
- Highest quality, high transmittance Sekurit glass provides enhanced strength and impact resistance.
- High performance models with pre-wired quick connection system with MC (PV-ST01) connectors.
SPM042357203
Data sheet
- Panel power
- 235Wp
- Connections
- MC4
- Solar panel length (mm)
- 1580mm
- Solar panel width (mm)
- 880mm
- Solar panel height (mm)
- 30mm
- Solar panel Vmpp
- 40.1V
- Solar panel Impp
- 5.36A
- Solar panel Voc
- 46.01V
- Solar panel Isc
- 5.65A
- Weight
- 15kg
- Shipping note
- For solar panel shipping, we pass on the additional costs of shipping, special pallet and additional handling costs of CHF 100 to the customer!
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/solar-pv-panels/bluesolar-panels#downloads
- System voltage
- 12 - 24V
Specific References
- EAN13
- 8719076070689
- MPN
- SPM042357203
