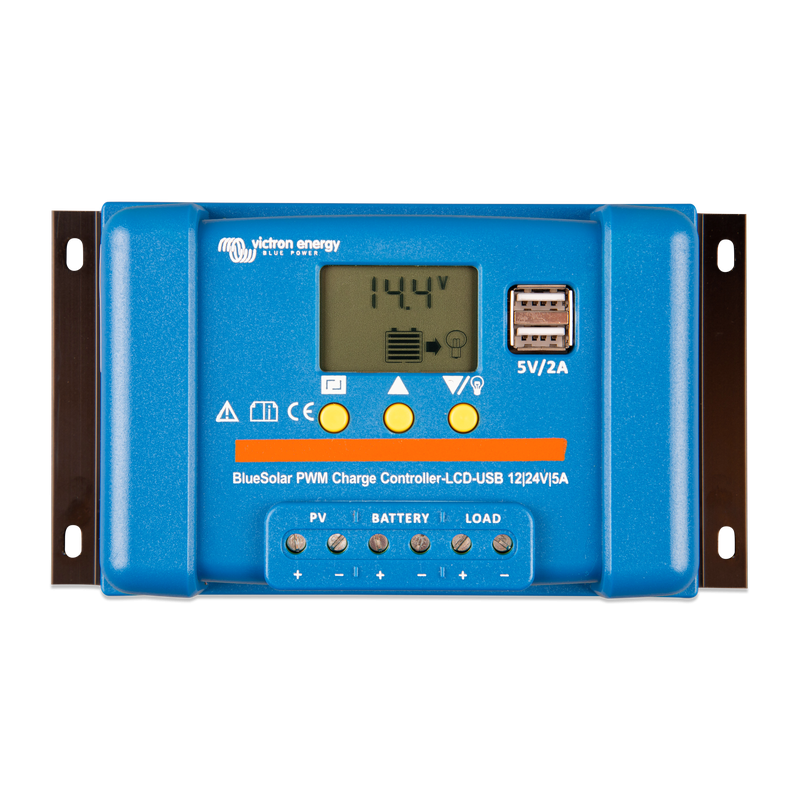

BlueSolar PWM-LCD&USB 12/24V-5A

SCC010005050

PWM-LCD&USB solar charge controller 5Amp.

- Battery voltage 12-24V, charging current 5Amp
- PWM charging technology, PV voltage 28 / 55V
- load output, 2x USB total 5A

CHF28.00
Tax excluded
CHF30.27 inkl. MwSt.
favorite_border Add to my wishlist

from order approx. 7 days
Lagerbestand: -2 Stk.
Im Zulauf: 2 Stk.

BlueSolar PWM charge controller LCD&USB



- Liquid crystal display
- Two 5-volt USB outputs
- Three-stage battery charging (bulk, absorption, float), fully programmable
- Load output with undervoltage and manual switch-off (programmable)
- Lighting control function, fully programmable
- Load output protected against overload and short circuit
- Protected against reverse polarity of the solar modules and/or the battery

Models:

12 / 24 / 48 Volt

SCC010005050

Data sheet

Output voltage
12 / 24V
Charging current
5A
Loading algorithm
3-stufig
PV input voltage
28V / 55V
Output voltage Characteristic
Ladekennlinie
Connections
Offene Enden 6mm2
Load output
Protection class IP
IP 20
Output
Dimension
96 x 169 x 36mm
Weight
0.15kg
