Featured products

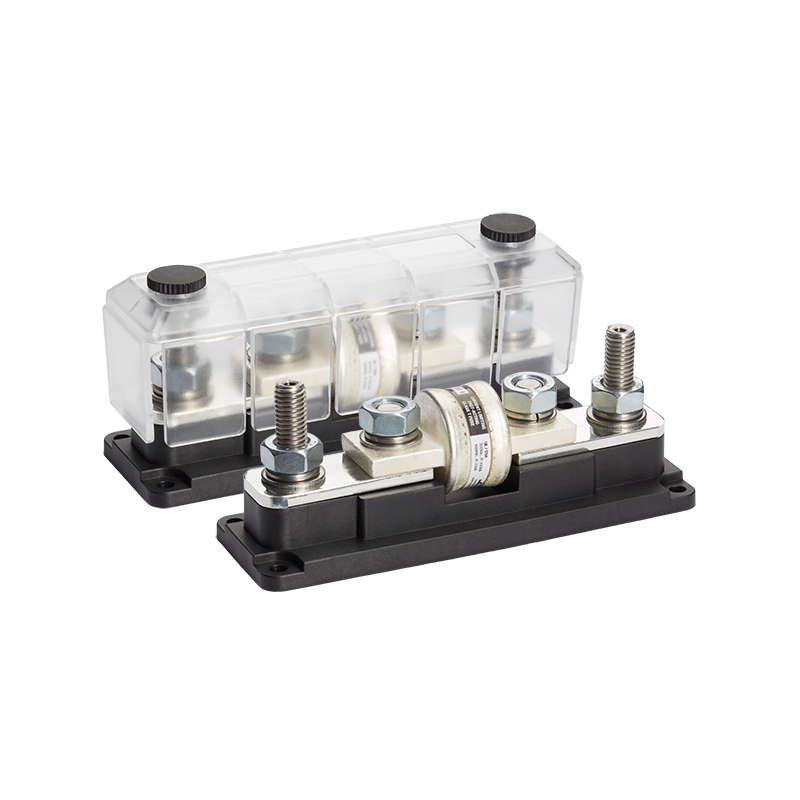

TBS - DCM Class-T fuse holder (60V/400A) M10
TBS-5073850
DC Modular Class-T fuse holder
- 60V, up to 400A
- expandable with link plates
- High screws M10, cover customizable
Accessories / Levy
Installation
Fuse
DCM Class-T fuseholder (400A) M10
A wide range of fuseholders is available in the DC Modular product range, with fuse ratings from 35A up to 600A.
Fuseholders for Mega®, ANL and Class-T fuses are offered, providing solutions for a wide range of applications.
The solid and compact design and the ability to connect multiple fuseholders in a fixed grid make these products the best choice for all professional DC power supply systems.
Features
- Stainless steel bolts, nuts and washers for optimum corrosion resistance
- Tin-plated high-purity copper buses ensure maximum conductivity, reduce heat and improve efficiency
- Special fiber-reinforced base material offers excellent high-temperature properties, good chemical resistance and high strength
- Unique grid-optimized layouts allow space-saving arrangements of multiple products
- Common connection heights for easy combination of multiple products using connection plates (except Mega and ANL (300A) fuse holders)
- Robust transparent covers with cut-outs for cable access from any direction
- Intelligent connection design enables double mirrored cable lug connections
- Easy access to the connections in the system thanks to the top-locking covers (except Mega and ANL (300A) fuse holders)
TBS-5073850
Data sheet
- Amperage
- 400A
- Connections
- M10
- Feature
- Compatible with Littelfuse 'JLLN', Cooper Bussmann / Edison 'JJN' and 'TJN' and Mersen 'A3T' fuses
- Dimension
- 150 x 50 x 64.5mm
- DMC Mesh size
- 1 x 3
- Fuse type
- Class-T
- How it works
- https://youtu.be/-C6nJ1ghyS8
- Manufacturer data sheet & operating instructions
- https://tbs-electronics.com/product/fuse-holders/
- System voltage
- bis 60VDC
Specific References
- EAN13
- 8721042600929
