Featured products

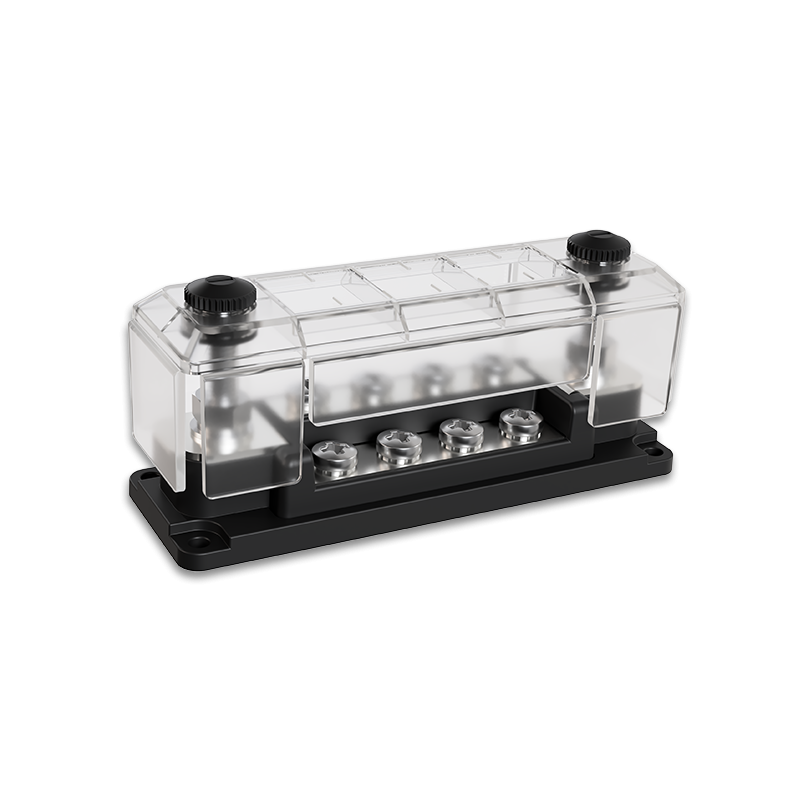

TBS - DCM 8xM6 double row busbar (60V/300A)
TBS-5071042
DC modular distributor 8xM6 + 2xM8
- Distribution rail for DC direct current distribution
- all same potential
- expandable with link plates
- High M8, small M6 screws, cover customizable
Accessories / Levy
Installation
DC Modular double row distributor 8x M6 + 2x M8 - 300A
The DC Modular high-current busbars are used to distribute high DC currents to connected cables or other members of the DC Modular family.
The solid and compact design as well as the possibility to connect several busbars and relays to a fixed grid make these products the best choice for all professional DC power supply systems The double-row distributors come with two M8 main connection poles and 2x 4 M6 screw outlets
Features
- Stainless steel bolts, nuts and washers for optimum corrosion resistance
- Tin-plated, high-purity copper bar provides maximum conductivity, reduces heat and improves efficiency
- Special fiber-reinforced base material offers excellent high-temperature properties, good chemical resistance and high strength
- Unique grid-optimized layouts enable space-saving arrangements of multiple products
- Common connection heights for easy combination of multiple products using connection plates
- Robust transparent covers with cut-outs for cable access from any direction
- Intelligent connection design enables double mirrored cable lug connections
- Easy access to the connections in the system thanks to top-locking covers
-> The optional adapter plate enables DCM products to be connected and combined to form a cluster
TBS-5071042
Data sheet
- Amperage
- 300A
- Number of outputs
- 2x M8 + 8x M6
- DMC Mesh size
- 1 x 3
- How it works
- https://youtu.be/-C6nJ1ghyS8
- Manufacturer data sheet & operating instructions
- https://tbs-electronics.com/product/dcm-busbars/
- System voltage
- bis 60VDC
Specific References
- EAN13
- 8721042601759
- MPN
- TBS-5071042
