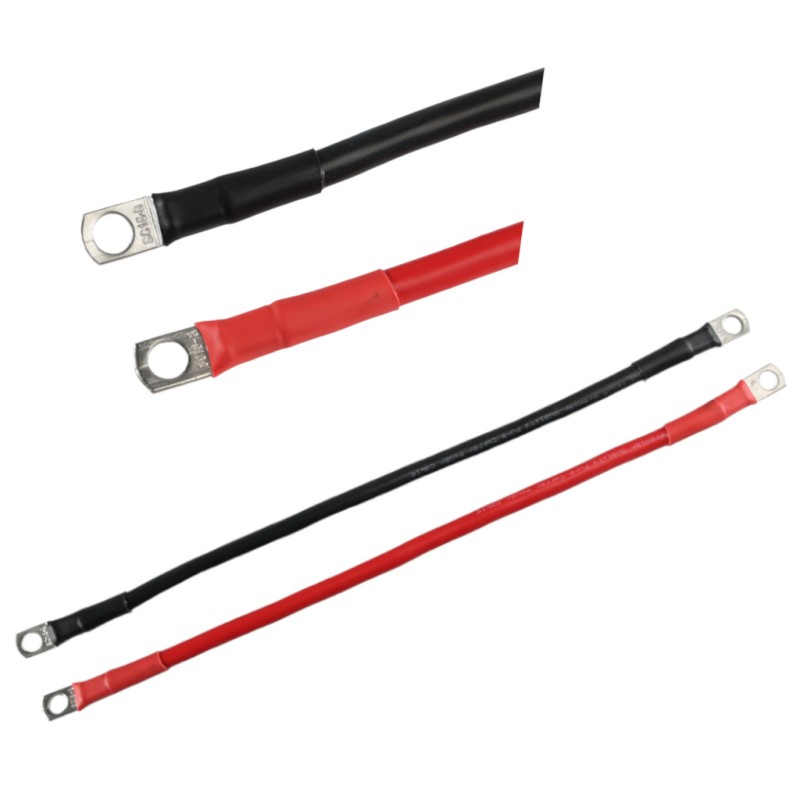

Battery DC cable set - 2x 16mm2 - 0.3m, M8 cable lugs
  • Battery DC cable set - 2x 16mm2 - 0.3m, M8 cable lugs

Battery cable set - 2x 16mm2 - 0.3m, M8 cable lugs

SS-M8M8-1630

DC cable set - 16mm2, with M8 cable lugs

- 1x 0.3m red 16mm2, with M8 cable lugs
- 1x 0.3m black 16mm2, with M8 cable lugs
- shrunk with heat-shrink tubing
- flexible fine stranded cable

CHF5.45
excl. VAT.
CHF5.89 incl. VAT.
favorite_border Add to wishlist

Available immediately - 1-2 days*
Stock: 125 Pcs.
In the inflow: 0 Pcs.
Lieferzeit: 1-5 Werktage

Cable set - 2x 16mm2 with M8 cable lugs - 0.3m

Flexible, fine-wire DC cable for connecting DC high-current consumers such as inverters, inverters, MultiPlus combi devices, armature winches, etc. As well as for connecting DC high-current chargers, solar charge controllers or charge boosters.

These cables are pre-assembled to length and have crimped-on cable lugs with M8 mounting holes at the ends.
The cable lugs are fitted with shrink tubing.

The flexibility is similar to the SGF cable, although the insulation material is different.



When connecting, ensure that the cable lugs make good contact with the contact surface.
Do NOT use washers or nuts between the contact surfaces.

Please refer to our tip "Correct cable lug connection"




Specifications:

Cable cross-section 16mm2 Battery cable
Standard GB/T 5023.5-2008


Structure of the conductor:

Copper wires (pieces) 322 pieces
Copper wire outer diameter 0.25±0.002mm
Conductor type OFC (pure oxygen copper)
Conductor resistance 20°C (MΩ/km) ≤0.0046


Insulation:

Insulation material Rubber and plastic 105℃
Rated voltage 450/750V
Insulation outer diameter 8.2±0.1mm
Average diameter 1.45mm
minimum thickness ≥1mm
Flame retardant standard FT-1
Anti-UV Yes
Working temperature range -40°C -- +105°C
Color red & black

Appearance No impurities, no scratches, smooth, round
Environmental testing ROHS(No Pb,Cd,Hg,Cr+6,PBBs,PBDEs)
Stress test of the finished product soak in water for 1 hour at room temperature, apply 1.5kV voltage for 5 min, no breakdown
Spark test 6kV
Burning test -

SS-M8M8-1630

Data sheet

Connections
Tubular cable lug M8
Cable length
0.3m
Cable cross-section
16.0mm2 (ø 8.2mm)
Manager
Flexible bare copper

Specific References

EAN13
7640268111853
MPN
SS-M8M8-1630
