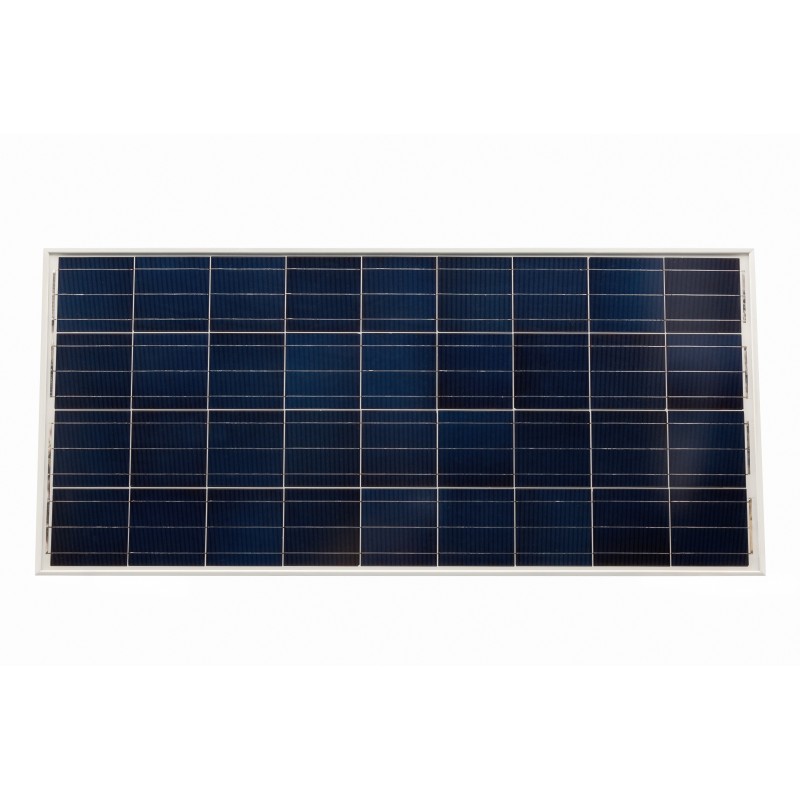

Solar panel 330W-24V, Polycrystalline
Solar module polycrystalline 330Wp
- Battery voltage 12-24V, power 330Wp
- 22.5kg, 0.9m cable with MC4
- 1956 x 992 x 40mm
Zubehör / Gebühr
Solarladeregler
SmartSolar MPPT 100/30 CHF150.00 | ||
SmartSolar MPPT 150/60-MC4 CHF410.00 | ||
SmartSolar MPPT 150/60-Tr CHF410.00 | ||
BlueSolar MPPT 150/60-MC4 (12/24/48V-60A) CHF371.00 | ||
BlueSolar MPPT 150/60-Tr (12/24/48V-60A) CHF371.00 |
Solarpanel flexibel
Solar Montage
Klebe Set für Solarmodul Spoilermontage CHF53.00 | ||
3M™ VHB™ Oberflächenreiniger CHF19.00 |
Solar Installation
Abzweigbuchse MC4 - Y Stück 2x F 1x M CHF9.45 | ||
Abzweigstecker MC4 - Y Stück 2x M 1x F CHF9.30 | ||
Dachdurchführung, 1-fach, Weiss CHF34.00 | ||
Dachdurchführung, 2-fach, Weiss CHF34.00 | ||
Entriegelungswerkzeug MC4 CHF1.05 | ||
copy of Kupplungsbuchse MC4 einzeln - mit Crimphülse CHF8.00 |
Blitz / Überspannungsschutz
Werkzeuge
Entriegelungswerkzeug MC4 CHF1.05 | ||
copy of Montage- und Entriegelungsschlüssel MC4 CHF6.60 | ||
Montage- und Entriegelungsschlüssel MC4 CHF37.25 | ||
Crimpzange MC4 - semiprofessionel CHF129.90 | ||
Abisolierzange (1.5, 2.5, 4, 6mm2) CHF180.55 | ||
Zangen- Multimeter AC/DC 588D CHF80.00 |
BlueSolar Panel Poly 330Wp
- Low temperature-voltage coefficient ensures high efficiency even at high temperatures.
- Exceptional performance even in low light conditions and high light sensitivity across the entire solar spectrum.
- 25-year limited warranty on power output and performance.
- 5-year limited warranty on materials and workmanship 5 year limited warranty on materials and workmanship.
- Sealed, waterproof, multifunctional junction box provides a high level of security.
- High performance bypass diodes minimise current drop caused by shading.
- The advanced EVA (ethylene vinyl acetate) encapsulation system with three-layer backsheet meets the most stringent safety regulations for high voltage operation.
- A sturdy, anodised aluminium frame allows the modules to be easily attached to the roof using a range of standard mounting systems.
- The highest quality, high transmittance Sekurit glass offers improved strength and impact resistance.
- High performance models with pre-wired quick connection system with MC (PV-ST01) connectors.
Data sheet
- System voltage
- 12 - 24V
- Panel power
- 330Wp
- Connections
- MC4
- Solar panel length (mm)
- 1956mm
- Solar panel width (mm)
- 992mm
- Solar panel height (mm)
- 40mm
- Solar panel Vmpp
- 37.3V
- Solar panel Impp
- 8.86A
- Weight
- 22.5kg
- Hint
- Mindestabnahme Menge für Versand 4 Stk. -- Bei Abholung können auch einzelne Panels gekauft werden. Bitte kontaktieren Sie uns, Danke.
