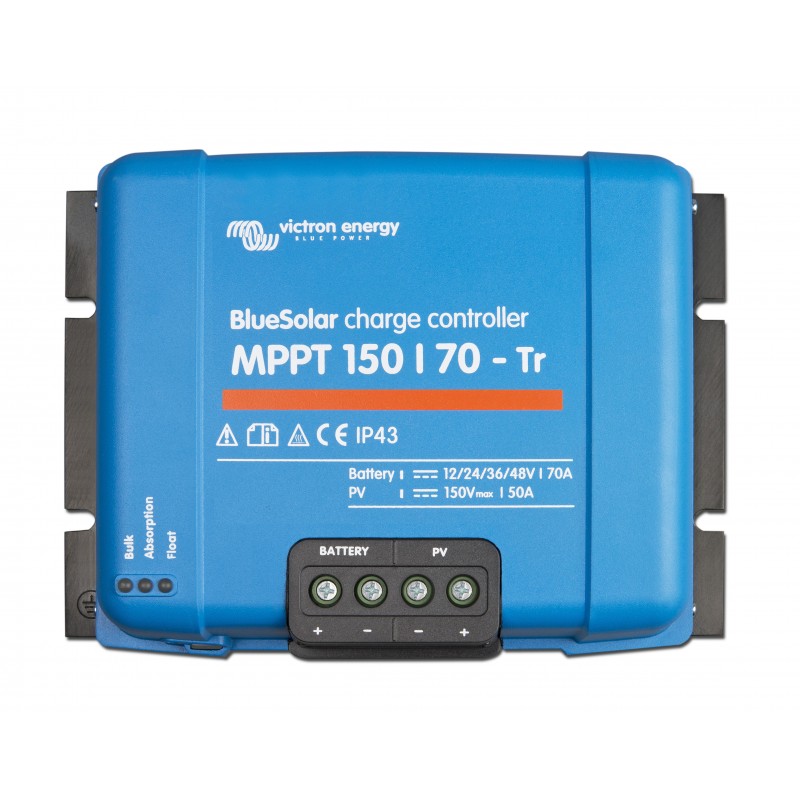

BlueSolar MPPT 150/70-Tr
SCC010070200
MPPT solar charge controller 70Amp.
- Battery voltage 12-48V, charging current 70Amp, PV voltage up to 150V
- Efficiency: 98%, customisable charging characteristic & load output 70Amp
- VE.Direct interface for system integration, (Bluetooth as accessory)
Zubehör / Gebühr
Solarpanel flexibel
Solar Installation
Systemintegration
BlueSolar MPPT 150/70 solar charge controller
A solar charger is supplied with energy via solar modules and then stores it in batteries. Using the latest and fastest technology, the SmartSolar maximises and intelligently directs theabse energy production to fully charge the batteries in the shortest possible time. The SmartSolar maintains the functionality of the battery and thus extends its service life.
The SmartSolar charge controller even recharges a heavily discharged battery. It can operate with a battery voltage of just 0 volts, provided the cells are not permanently sulphated or otherwise damaged.
MPPT: Ultra-fast maximum power point tracking
By continuously monitoring the voltage and current output of your solar (PV) modules, MPPT technology ensures that all available energy is drawn from the modules and stored. The benefit of this is most noticeable when the sky is partly cloudy and the light intensity is constantly changing.
Remote monitoring and control
You can remotely control and monitor the extensive functions of your SmartSolar MMPT charger with integrated Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your system is connected to the Victron Remote Management Internet Portal (VRM) via a GX device, you have full access to your MPPT at any time and from anywhere. Both VictronConnect and VRM are available free of charge. For remote installations - even if there is no internet connection nearby - you may be able to monitor your MPPT by connecting to the GlobalLink 520.
Load output
The 'Intelligent Load Output' function prevents damage caused by using "dead" batteries. You can configure the voltage at which the SmartSolar disconnects a load - preventing excessive discharge of your batteries. And here's the trick: SmartSolar attempts to recharge the battery to 100 % every day. If this is not possible - e.g. in bad weather - it raises the voltage value for disconnection every day until it is successful. We call this function BatteryLife because it maintains the functionality and extends the life of your battery.
VictronConnect
With VictronConnect, you can request live status information and configure all Victron products that either have a built-in Bluetooth function or are connected to a VE.Direct Bluetooth Smart Dongle.
SCC010070200
Data sheet
- Output voltage
- 12 / 24 / 36 / 48V
- Charging current
- 70A
- Loading algorithm
- mehrstufig, adaptiv
- Nominal PV power 12V
- 1000W
- Nominal PV power 24V
- 2000W
- Nominal PV power 48V
- 4000W
- PV input voltage
- 150V
- Connections
- Load output
- Ja - programmierbar
- Protection class IP
- IP 43
- Interface
- VE.Direct
- Dimension
- Weight
- 3kg
