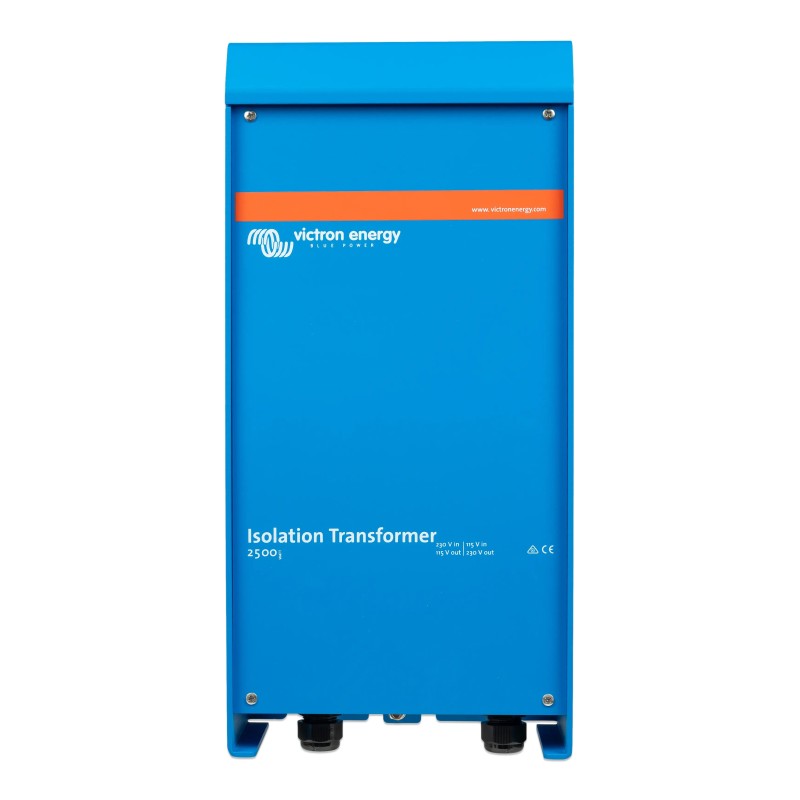

Isolation Transformer 2500W 115/230V
ITR040252043
2500 W isolation transformer
Input: 115/230 V; output: 120/240 V; rated current: 22/11 A; 50/60 Hz, soft start, IP21.
Galvanic isolation for shore-power systems
The toroidal transformer galvanically separates the onboard system from shore power, improves safety and reduces galvanic corrosion. Soft start limits inrush current.
• 2500 W
• Input/output: 115/230 V / 120/240 V
• Rated current: 22/11 A
• 50/60 Hz, IP21
• 446 × 214 × 135 mm, 12,0 kg
Installation and protection must be completed by a qualified electrician.
ITR040252043
Data sheet
- Input voltage
- 115 / 230 VAC
- Output voltage
- 120 / 240 VAC
- Frequency
- 50 & 60 Hz
- Amperage
- 22A / 11A
- Galvanic insulation
- YES
- Protection class IP
- IP 21
- Feature
- Softstart
- Dimension
- 446 x 214 x 135mm
- Weight
- 12kg
- Note
- No frequency change
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.com/media/pg/Isolation_Transformer_2500W/en/index-en.html
Specific References
- EAN13
- 8719076066101
- MPN
- ITR040252042
