Pytes V5 Alpha Plus Cable, 2 m – Amphenol 8.0 mm to M10

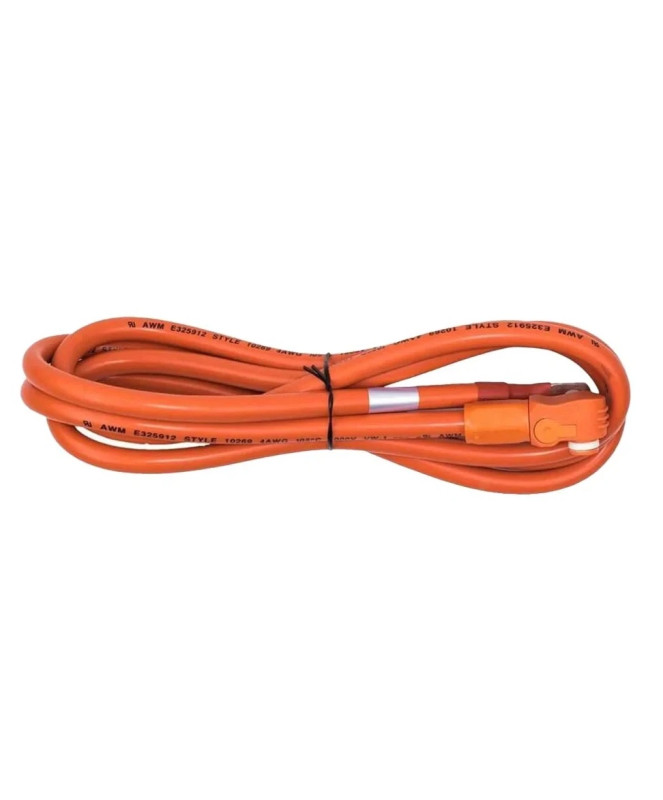

The Pytes battery cable with the manufacturer's part number 161412101027 is the positive connection cable for battery systems in the Pytes V5°α and V5°α Plus series. The Amphenol SurLok 8.0-mm connector is connected to the battery's positive power terminal.

At the other end of the cable is a pre-assembled M10 ring terminal. This allows the battery to be connected to a compatible DC fuse, busbar, or inverter connection.

Benefits of the Pytes V5 Alpha Plus Cable

• Compatible battery connector: Amphenol SurLok Plus 8.0 mm for Pytes V5°α and V5°α Plus.
• Pre-assembled M10 connector: SC50-10 ring terminal for a matching M10 bolt.
• 2 m cable length: Enables flexible cable routing between the battery and the DC component.
• Large conductor cross-sectional area: 0 AWG or 1/0 AWG with 53.5 mm².
• Unambiguous polarity: The orange wire is intended for the positive DC terminal.
• Ready for installation: The Amphenol connector and M10 ring terminal are already attached.

Connection to the Pytes V5°α battery

The Pytes V5°α features 8.0 mm Amphenol SurLok Plus power connectors. The orange Amphenol plug on this cable is inserted into the battery's positive power terminal and pushed in until it locks securely in place.

The M10 ring terminal is connected on the opposite side to a matching positive M10 terminal. Depending on the system configuration, this may be a DC fuse, a busbar, a junction box, or the battery input of an inverter.

Compatible Pytes Batteries

• Pytes V5°α with Amphenol SurLok Plus 8.0-mm power connector
• Pytes V5°α Plus with Amphenol SurLok Plus 8.0-mm power connector

Correctly Match 0 AWG and Amphenol 8.0 mm

The information Amphenol 8.0 mm refers to the diameter of the plug contact, not the conductor cross-sectional area. The cable itself is specified as UL10269-0AWG or UL10269-1/0AWG and has a conductor cross-sectional area of 53.5 mm².

The M10 designation also refers to the bore of the ring terminal or the corresponding connecting bolt. Different cable types are required for M8 connectors or Amphenol 5.7-mm sockets.

Technical Specifications

Installation Instructions

Before installation, check the battery's Amphenol connector, the M10 mating connector, the polarity, and the required fuse rating. The positive and negative wires should be selected to match each other and routed properly.

Amphenol connectors must not be mated or unmated while under load. Installation must only be performed when the system is de-energized and protected against accidental re-energization. Connection torques, fusing, and system sizing must comply with the manufacturer’s current documentation.

Conclusion

The Pytes Plus Cable 161412101027 is the correct pre-assembled cable for the positive power connection of a Pytes V5°α or V5°α Plus. With a length of 2 m, an Amphenol SurLok 8.0 mm connector, and an M10 ring terminal, it provides a clearly defined connection between the battery and the DC system.

Frequently Asked Questions About the Pytes V5 Alpha Plus Cable

• Which Pytes batteries is this cable designed for?




  The cable is designed for the Pytes V5°α and V5°α Plus Designed with an Amphenol SurLok Plus 8.0-mm power connector.

• Does this cable also work with the standard Pytes V5°?




  Not automatically. According to the manufacturer, the standard Pytes V5° uses a PHOENIX power connector. This cable is intended for the Alpha models with an Amphenol 8.0-mm connector.

• Does the package include a complete set of positive and negative cables?




  No. Delivery will be a single orange power cable. The matching black negative cable with Pytes part number 161412101029 is required and sold separately.

• What does "Amphenol 8.0 mm" mean?




  The specification "8.0 mm" refers to the Amphenol connector at the battery terminal. It should not be confused with the conductor cross-sectional area. The conductor has a cross-sectional area of 53.5 mm².

• What type of connection is the ring terminal designed for?




  The SC50-10 ring terminal is designed for a M10 mounting bolt ...is provided. A different cable configuration is required for M8 connectors.

• What is the current-carrying capacity of the cable?




  The product-specific Pytes data sheet lists a current-carrying capacity for this 2-meter cable of 150 A. The permissible system load is further limited by the battery, connections, fuses, installation method, and other components.
