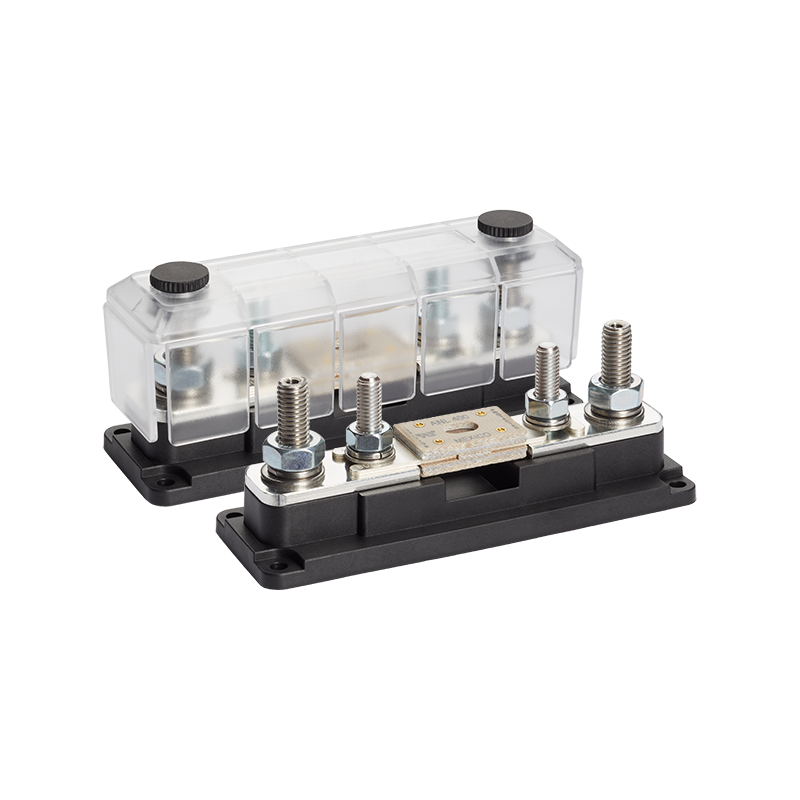

TBS - DCM/EF3 ANL Fuse Holder (600A) M8
TBS-5073550
DC Modular ANL Fuse Holder
- 60V, 35–600A
- Expandable with link plates
- M8 high-head screws, customizable cover
Accessories / Levy
Installation
Fuse
DCM MEGA Fuse Holder (600A) M8
A wide range of fuse holders is available in the DC Modular product line, with fuse ratings ranging from 35A to 600A.
Fuse holders for Mega®, ANL, and Class-T fuses are offered, providing solutions for a wide range of applications.
The robust and compact design, along with the ability to connect multiple fuse holders in a fixed grid, make these products the best choice for all professional DC power supply systems.
Warning! The Mega and ANL (300A) fuse holders are not compatible with the DMC network
Features
- Stainless steel bolts, nuts, and washers for optimal corrosion resistance
- Tinned, high-purity copper busbars ensure maximum conductivity, reduce heat, and improve efficiency
- Special fiber-reinforced base material offers excellent high-temperature properties, good chemical resistance, and high strength
- Unique, grid-optimized layouts enable space-saving arrangements of multiple products
- Standardized terminal heights for easy combination of multiple products using connection plates (except for Mega and ANL (300A) fuse holders)
- Robust transparent covers with cutouts for cable access from any direction
- Intelligent connection design enables dual mirrored cable lug connections
- Easy access to the connections within the system thanks to the top-locking covers (except for Mega and ANL (300A) fuse holders)
TBS-5073550
Data sheet
- Amperage
- 600A
- Connections
- M8
- Feature
- Compatible with Littelfuse 'CNN' & 'CNL' and - Cooper Bussmann 'ANL' and 'ANN' fuses
- Dimension
- 150 x 50 x 64.5mm
- DMC Mesh size
- 1 x 3
- Fuse type
- ANL
- How it works
- https://youtu.be/-C6nJ1ghyS8
- Manufacturer data sheet & operating instructions
- https://tbs-electronics.com/product/fuse-holders/
- System voltage
- bis 60VDC
Specific References
- EAN13
- 8721042600905
- MPN
- TBS-5073550
