copy of Battery / starter cable Highly flexible - 70mm2 red -25m
SS-BC-70-RT-00

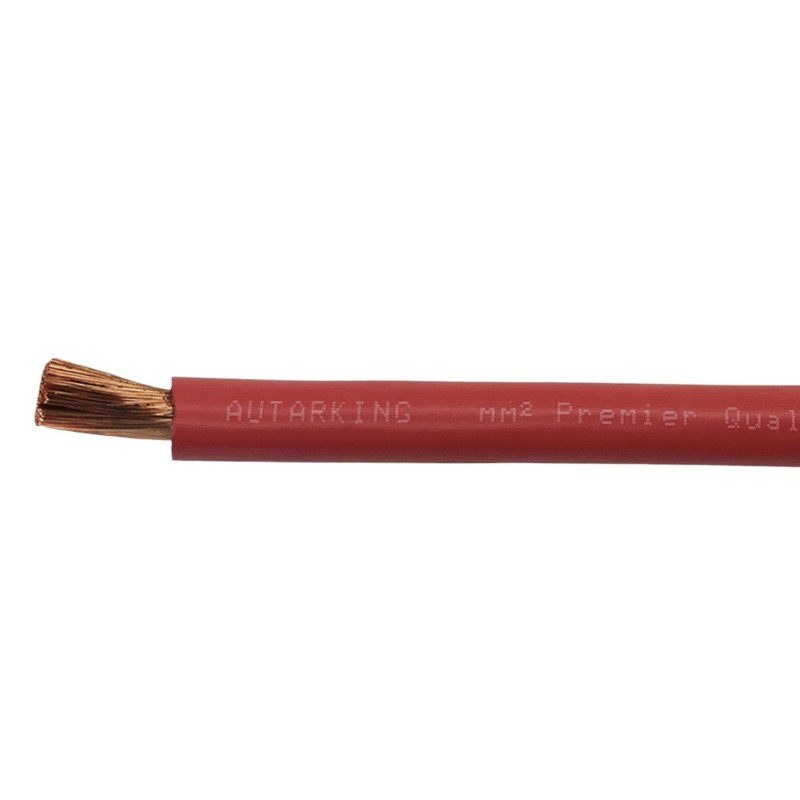

DC welding cable 70mm2 - red - 25m ring
- Flexible, fine-wire
- for DC high-current installations
Battery cable for high-current applications - flexible - 70mm - red
Flexible, fine-core DC cable for high-current applications such as battery, inverter/inverter or charger cabling.
The smaller diameters are perfect for solar charge controllers and charge boosters etc.
Its flexibility is similar to the SGF cable, although the insulation material is different.
See our selection of compression cable lugs in various sizes under accessories.
Specifications:
| Cable cross-section | 70mm2 Battery cable |
| Standard | GB/T 5023.5-2008 |
Structure of the conductor:
| Copper wires (pieces) | 1406 pieces |
| Copper wire outer diameter | 0.25±0.002mm |
| Conductor type | OFC (pure oxygen copper) |
| Conductor resistance 20°C (MΩ/km) | ≤0.0032 |
Insulation:
| Insulation material | Rubber and plastic 105℃ |
| Rated voltage | 450/750V |
| Insulation outer diameter | 17.5±0.1mm |
| Average diameter | 3.3mm |
| minimum thickness | ≥2.8mm |
| Flame retardant standard | FT-1 |
| Anti-UV | Yes |
| Working temperature range | -40°C -- +105°C |
| Color | red |
| Appearance | No impurities, no scratches, smooth, round |
| Environmental testing | ROHS(No Pb,Cd,Hg,Cr+6,PBBs,PBDEs) |
| Stress test of the finished product | soak in water for 1 hour at room temperature, apply 1.5kV voltage for 5 min, no breakdown |
| Spark test | 6kV |
| Burning test | - |
SS-BC-70-RT-00
Data sheet
- Cable length
- from 5m
- Cable cross-section
- 70.0mm2 (ø 17.5mm)
- Manager
- Flexible bare copper
- Insulation
- Soft PVC
- Temperature range
- -40°C to 105°C
- Nominal voltage Uo/U
- 450/750VDC
- Color
- Red
Specific References
- EAN13
- 7640268112010
- MPN
- SS-BC-70-RT-25
