Solar energy storage set for small detached houses, tiny houses with workshop

Use and store solar energy. Quite simply.

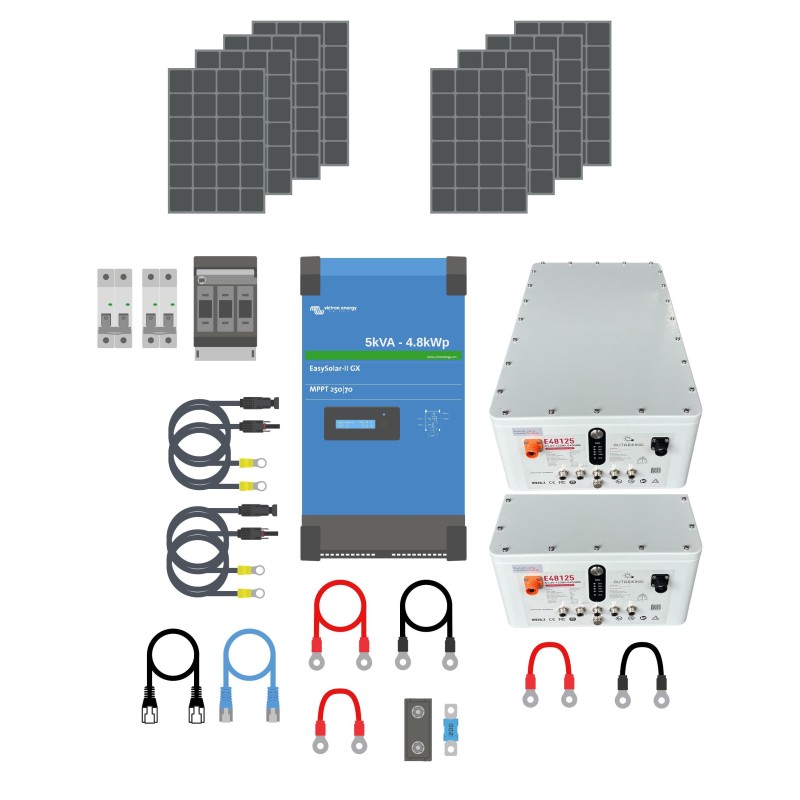

The solar energy storage set consists of the following components:

- Easysolar

The EasySolar combines an MPPT solar charge controller, an inverter/charger and a communication center in a single device. The device is easy to install and requires very little wiring.

The inverter operates all common loads (coffee machine, kettle, vacuum cleaner / hair dryer, water heater up to a continuous power of 4000W and 9000W peak).
Of course, depending on the available energy from the battery or the sun and your consumer behavior.

The charger charges the batteries when the sky is overcast or supports the inverter in the event of high consumption from the shore power grid or a generator.

This system is also certified to feed excess solar power back into the public grid.

A boiler or other loads can be controlled via a switchable 230V output depending on the battery status.
In this way, the solar power is used optimally. (system component adaptation required)

The integrated communication center can connect your system to the Internet, so that monitoring and alarming is possible at any time and from anywhere via the Victron VRM Portal.
An Internet connection can also be made for service purposes only.

The integrated Wifi allows full control of the system at all times. A small display on the device shows basic data.


More complex requirements can also be implemented; if necessary, we recommend a different basic device.

- Energy storage Autarking 2x 48V 125Ah / 12.8kWh battery

In addition to the 12.8kWh storage system, this battery also contains the battery management system and the battery monitor and communicates directly with the EasySolar. It stores electricity from the solar system or the shore power grid and, with a consumption of approx. 2 kWh / day, offers almost 5 days of self-sufficiency without sun or shore power / generator power.

- Solar system 3600Wp

The solar system supplies energy to charge the battery and / or for current consumption. In summer with full sun (45°, south-facing) it supplies between 12.6kWh and 16.2kWh of energy per day, depending on the location. This corresponds to approx. 12.8kWh charging power.

- Energy consumption & yield

With a consumption per 24 hours of approx. 2.6kWh / 48V -> 54Ah, the solar system normally supplies enough energy to cover your daily consumption and recharge the battery. On sunny days, a hot water boiler can also be heated or surplus energy fed back into the public grid.
As a rule, only the months of Nov, Dec, Jan, Feb are critical months.


Determine the yield at your location:






An individual calculation provides clarity in terms of consumption and yield. We will be happy to assist you with this.

Specifications:

- Easysolar 48V - 5000VA - 70Amp - 5800Wp
- Batteries 2x AUTARKING ESS Lifepo 51.2V 125Ah CAN
- Solar panels 8x 450Wp monocrystalline, bifacial
- Solar cable 10m 2 strings
- 2x DC circuit breaker 15Amp
- Battery cable 1.5m, fuse DC, battery communication
- NO 230V fuse components
- Settings and brief training, block diagram

Note on the scope of delivery:

This set only consists of the components listed above.

No components are included for the installation of the solar panels on the roof.
This is too individual, please discuss this with your roofer or local solar installer.


Please note that installation may generally only be carried out by an electrician.

If necessary, it also makes sense to analyze your energy requirements and your wishes during a consultation.

If you would like to integrate this set into your existing electrical system, we can help you with this or instruct your electrician.
